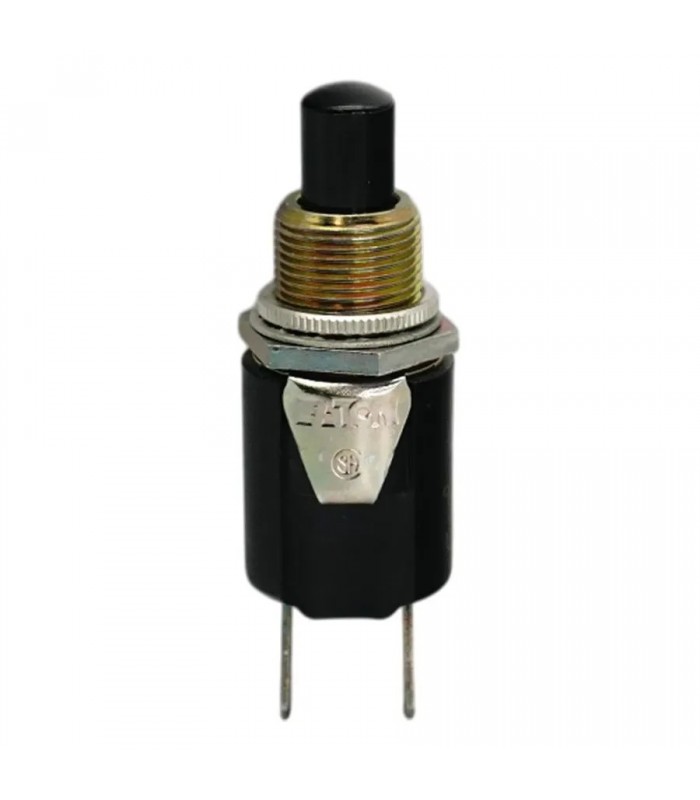

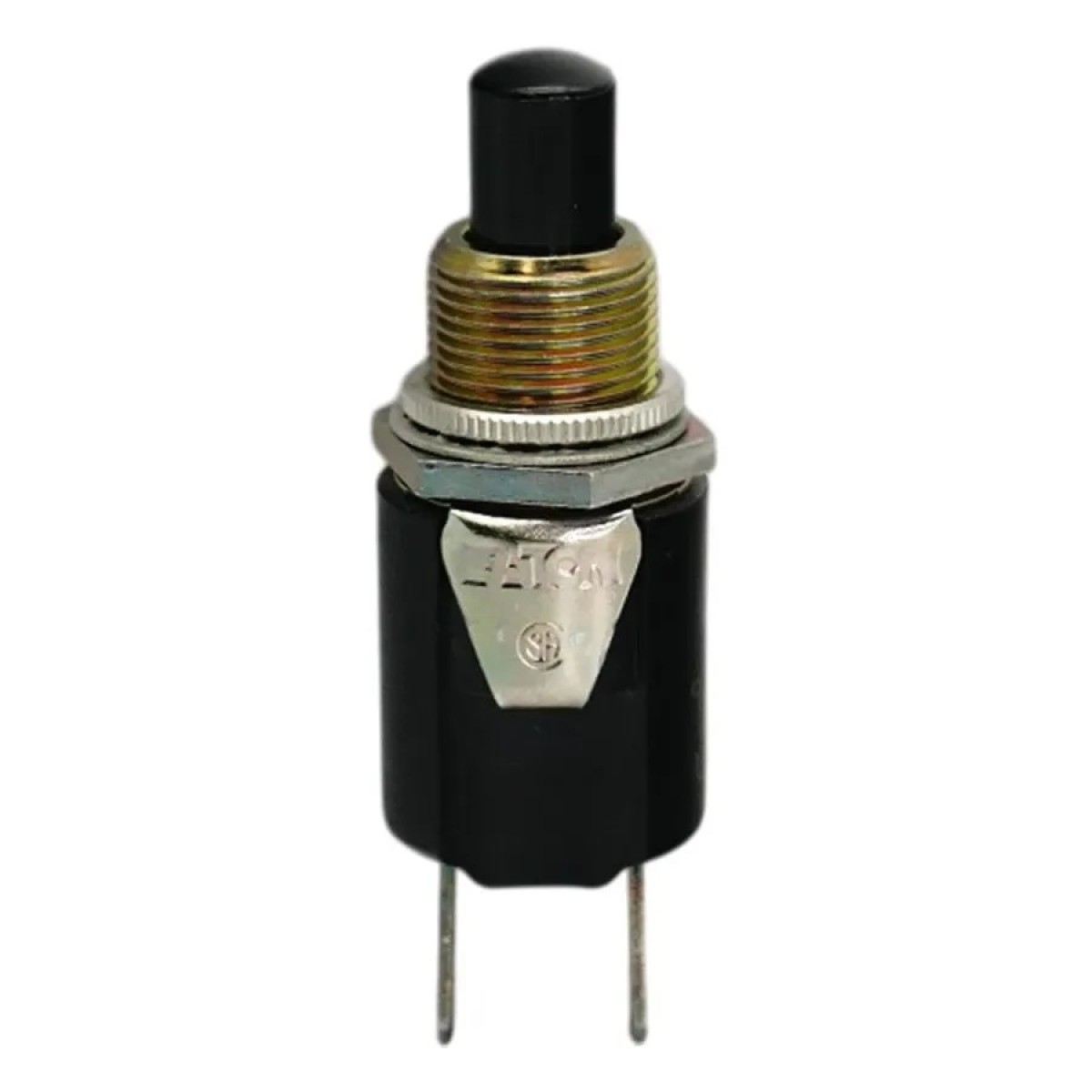

Round Momentary Push Button Switch - S.P.S.T. - N.O. - 125V - 750mA - Black

The SPST momentary push button switch Eaton 8411K11 is designed for simple and reliable control in electronic and light commercial applications. Featuring a SPST-NO configuration, it delivers precise momentary activation with smooth operating pressure.

Rated up to 125 V AC/DC with a maximum current of 750 mA, this SPST momentary push button switch mounts securely to a panel using a threaded bushing and quick connect terminals. Its round black nylon actuator provides a clean, durable and professional finish.

Features :

• Switch Type: Momentary Push button
• Contact Configuration: SPST - Normally Open (NO)
• Voltage Rating: 125V AC / 125V DC
• Maximum Current: 750mA
• Actuator Type: Round
• Mounting: Panel Mount (Threaded Ring)
• Terminal Type: Quick Connect
• Illumination: Non-Illuminated
• Diameter: 7.9 mm (0.312 in)
• Length: 20.6 mm (0.812 in)
• Color: Black
• CSA Certified
