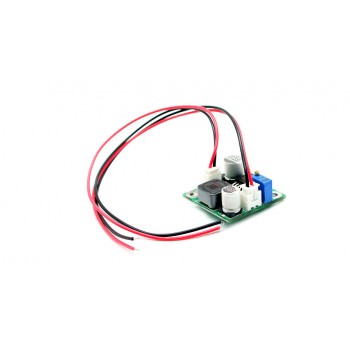

LM2596 Step Down Adjustable DC-DC Power Supply Module

Features:

• Brand new and high quality.
• Input voltage: 3.2-40V.
• Output Voltage: 1.5-35V (adjustable) ,input must least high 1.5V than output.
• Output current: rated current 2A, maximum 3A (need to add heat sink), if the output power greater than 15W, combined heat sink is proposed.
• Conversion efficiency:Up to 92% (output voltage higher, the higher the efficiency).
• Minimum dropdown voltage:1.5V.
• Dynamic response speed: 5% 200uS.
• Circuit protection: SS36.
• Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less).
• Load regulation: ± 0.5%.
• Size: 50 mm x 23 mm.

Package Included:

• 1 x LM2596 Adjustable Module
