KBPC-2506 Single Phase Diode Bridge Rectifier - 600 V - 25 A

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

KBPC-2506 Single Phase Diode Bridge Rectifier - 600 V - 25 A

Not yet rated Write a review
$3.99
Product Code: 078116
SKU: 078116
Availability: In Stock

  • Fast delivery

  • Satisfaction guarantee

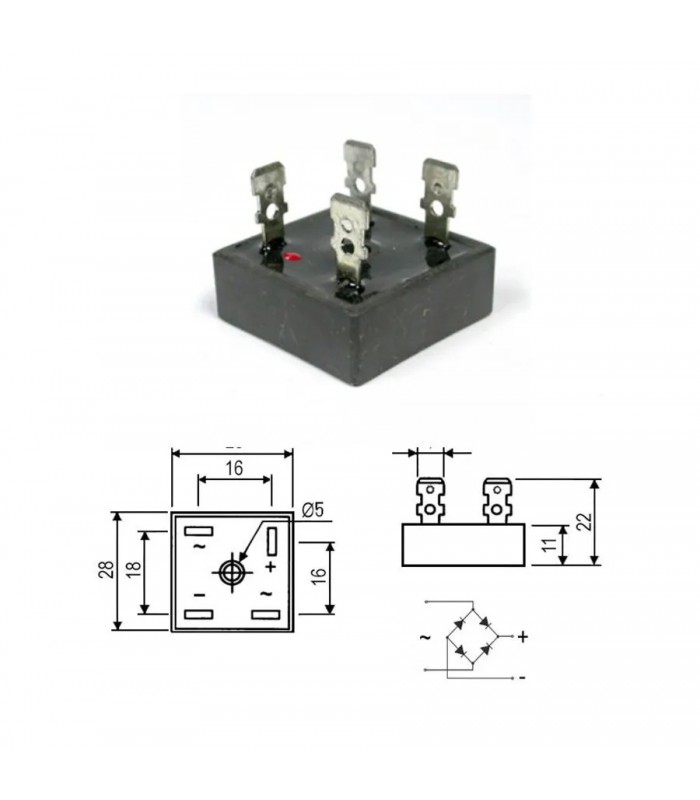

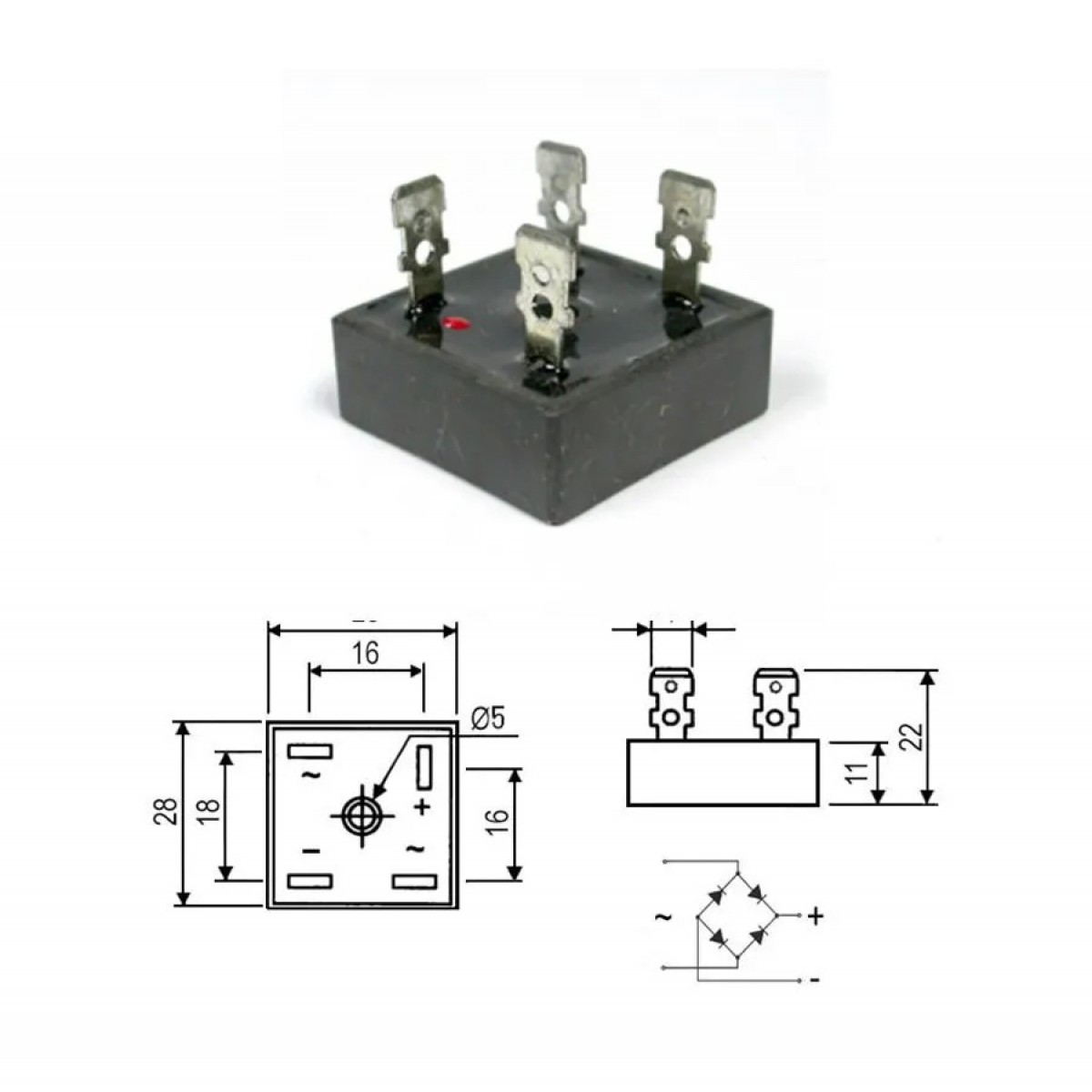

This diode bridge is designed to convert AC alternating current into DC direct current with a maximum voltage of 600 V and it can handle up to 25 A, it is constructed from 4 diodes 2 AC, one DC negative and DC positive .
Features :
  • Diffuse junction
  • Low reverse leakage current
  • Low power loss, high efficiency
  • Electrically insulated metal housing for maximum heat dissipation
  • Low thermal resistance
  • High surge current capacity
  • Voltage: 600 V - 25 A
  • 0.25" (6.35 mm) plated terminals
  • Metal Housing

Tags:

Model
Model KBPC-2506
